Description

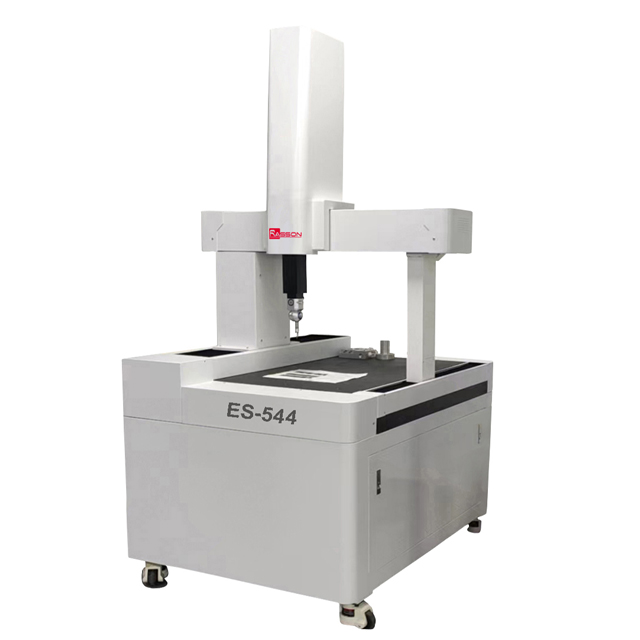

ES series workshop coordinate measurement machine use linear guideway on XYZ three axis, no need connect with air, can use directly after connect with power, it can work in 10-40 degree, with good dustproof design, make sure long life stability.
Special designed 3D controller, with space compensation make sure high accuracy.
Intergrated machine body take up small room, and convenient to move by forklift.
| Model | ES-433 | ES-544 | ES-654 |
| X,Y,Z travel (mm) | 300x400x300 | 400x500x400 | 500x600x400 |
| Overall dimensions (cm) | 170x120x190 | 180x130x200 | 200x160x200 |
| Machine weight | 300 kgs | 400 kgs | 500 kgs |
| Repeatability | 2 µm | ||
| Max table load | 80kg | ||
| Operation mode | CNC | ||
| Resolution | Metal 0.5µm scale | ||
| X,Y measurement precision | (3+ L/200) µm | ||
| Structure | High precision marble base with Gantry stucture | ||
| Moving system | absolute type servo motor | ||
