Description

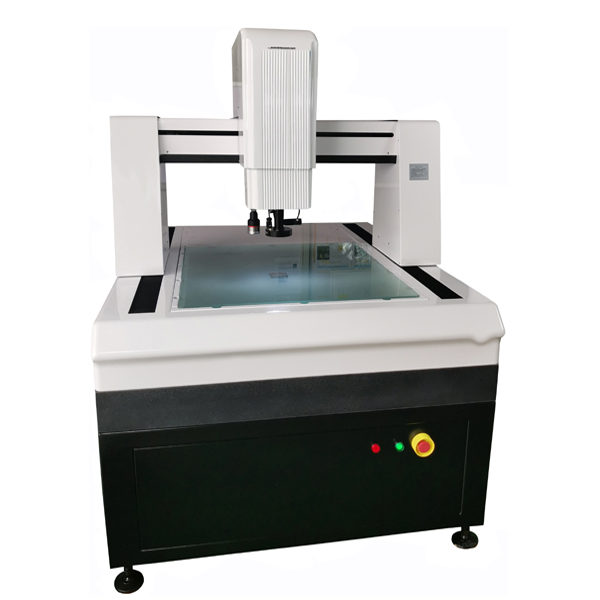

SPH series CNC vision measurement machine adopt bridge type structure, the measured parts will not change position when machine moving, in this way to make sure machine measuring accuracy and stability. On another hand installed with HIWIN line guider way, grinding level ball screw, and most powerful Panasonic servo motor moving system recognized by the whole industry as the most reliable system, high accuracy metal reflect type transducer from Europe, those make sure machine have powerful performance, high stability and long life.
| Model | SPH-5040 | SPH-7060 | SPH-8060 | SPH-1080 | SPH-1210 | SPH-1812 |
| X,Y,Z travel (mm) | 400x500x200 | 600x700x200 | 600x800x200 | 800x1000x200 | 1000x1200x200 | 1200x1800x200 |
| Overall dimensions (cm) | 130x110x180 | 150x120x180 | 160x120x180 | 180x150x180 | 190x190x180 | 270x210x180 |
| Machine weight | 700 kgs | 1100 kgs | 1200 kgs | 1500 kgs | 1800 kgs | 2200 kgs |
| Repeatability | 2 µm | |||||
| Max table load | 50 kgs | |||||
| Operation mode | Automatic CNC control, by mouse, keyboard or joystick / Super high speed and high trusty Ethernet connect with computer | |||||
| Resolution | 0.5 µm | |||||
| X,Y,Z precision | (2.5+L/250) µm | |||||
| Light source system | software controlled 8 zone surface light, coaxial light and straight contour light | |||||
| Structure | 00 grade granite base and mast | |||||
| Lens | High precision motorized Tele-centric auto-zoom lens | |||||
| Probe system | English RENISHAW precision touch probe | |||||
| Magnification | Optical enlarging rate 0.7-4.5x, image enlarging rate 30-200x | |||||
| Moving system | Japanese Panasonics AC servo motor & driver | |||||
| Vision system | 1980×1080 high resolution 1/2” industrial camera | |||||
