Description

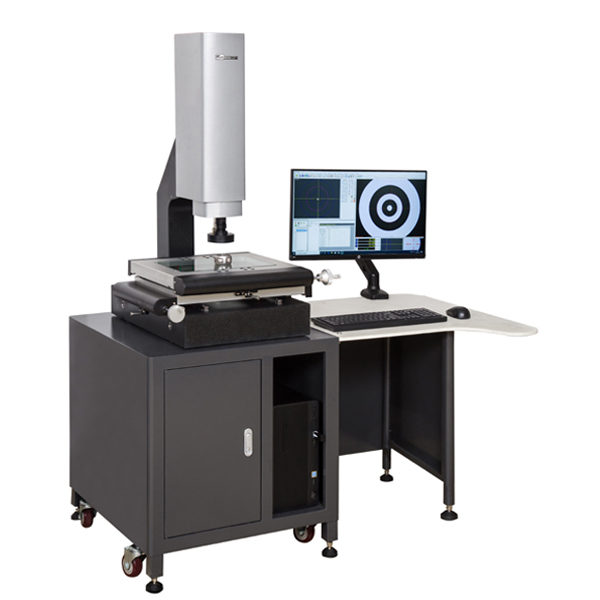

EV series uses high precision marbles as the machine base stand, which has a high capability / price ratio. Auto focus function as standard configures in this series. Lens installed with electrical sensor to make sure rotary to right position every time, and no need make image correction again after change enlarge rate, improve efficiency.
The electronic system of the EV series is advanced, as it uses the new multi-axial light motor controlling card, in this way the controlling system very succinct. Special processor reduces electronic circuitry and connectors, improve stability greatly. Super high speed reading ability, work with our latest high accuracy reading scale make sure high resolution and high accuracy measurement.
| Model | EV-2010 | EV-3020 | EV-4030 | EV-5040 |
| X,Y,Z travel (mm) | 200x100x150 | 300x200x200 | 400x300x200 | 500x400x200 |
| Overall dimensions (cm) | 135x72x165 | 135x72x170 | 135x72x170 | 150x92x170 |
| Machine weight | 160 kgs | 210 kgs | 300 kgs | 410 kgs |
| Repeatability | 2 µm | |||
| Max table load | 20 kgs | |||
| Operation mode | X Y Manual, Z motorized (control by mouse, keyboard) | |||
| Resolution | 0.5µm high accuracy reading scale | |||
| X,Y,Z measurement precision | (2.7+ L/250) µm | |||
| Light source system | Software controlled 8 zone surface light and straight contour light | |||
| Structure | 00 grade granite base and mast | |||
| Lens | High precision Tele-centric zoom lens with electrical sensor | |||
| Precision measuring head | UK RENISHAW precision touch probe | |||
| Magnification | Optical enlarging rate 0.7-4.5x, image enlarging rate 30-200x | |||
| Vision system | 1280×1024 high resolution1/2” industrial camera | |||
