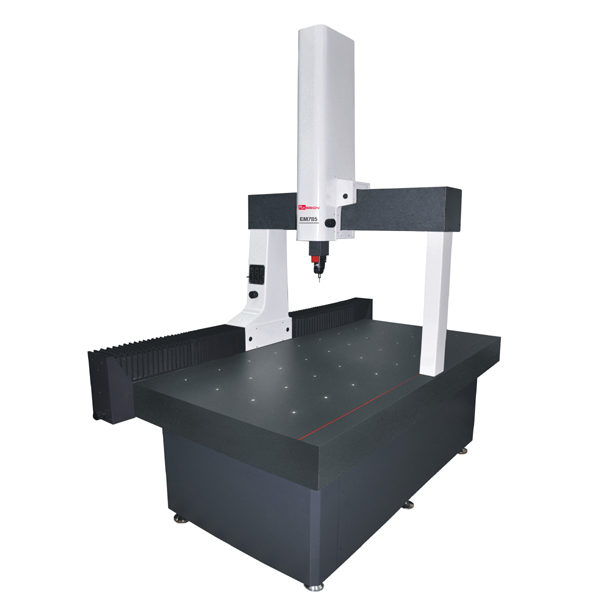

Description
◆ All core components and software are originally imported.
◆ Guideways are made of high-precision natural granite, which have the same temperature characteristics and rigidity.
◆ Guideway X, Y and Z are surrounded by air floating blocks to ensure the linearity of motion.
◆ High-precision self-cleaning air bearing is used for the permanently wear-resistant guideways of all the three axes for more steady operation.
◆ Open metallic optical scale with coefficient of thermal expansion closer to granite matrix improves the stability of the machine.
◆ With three-axis pneumatic locking, all the three axes are provided with a micro-feed structure that combines the convenience of manual operation with the accuracy of automatic operation.
◆ Guideway X and Y are vertically installed rectangular guideways that provide the maximum bending strength.
| Model | EM-564 | EM-785 | EM-7105 | EM-7125 | EM-7155 |
| X,Y,Z travel (mm) | 500x600x400 | 700x800x500 | 700x1000x500 | 700x1200x500 | 700x1500x500 |
| Useable table size (mm) | 1020×690 | 1220×890 | 1420×890 | 1620×890 | 2120×890 |
| Weight (kg) | 580 | 800 | 910 | 1100 | 1400 |
| Worktable max load (Kg) | 300 | 500 | 500 | 500 | 500 |
| Scale resolution | 1 µm | ||||
| Probe uncertainty (MPEE) µm | 3.5 | 3.8 | |||
| Measuring System | 3.2+L/250 | 3.5+L/250 | |||
| Working temperature | 15-30℃ | ||||
| Air supply | Pressure 4-10 bar, 120NI/min | ||||
